Product Specification

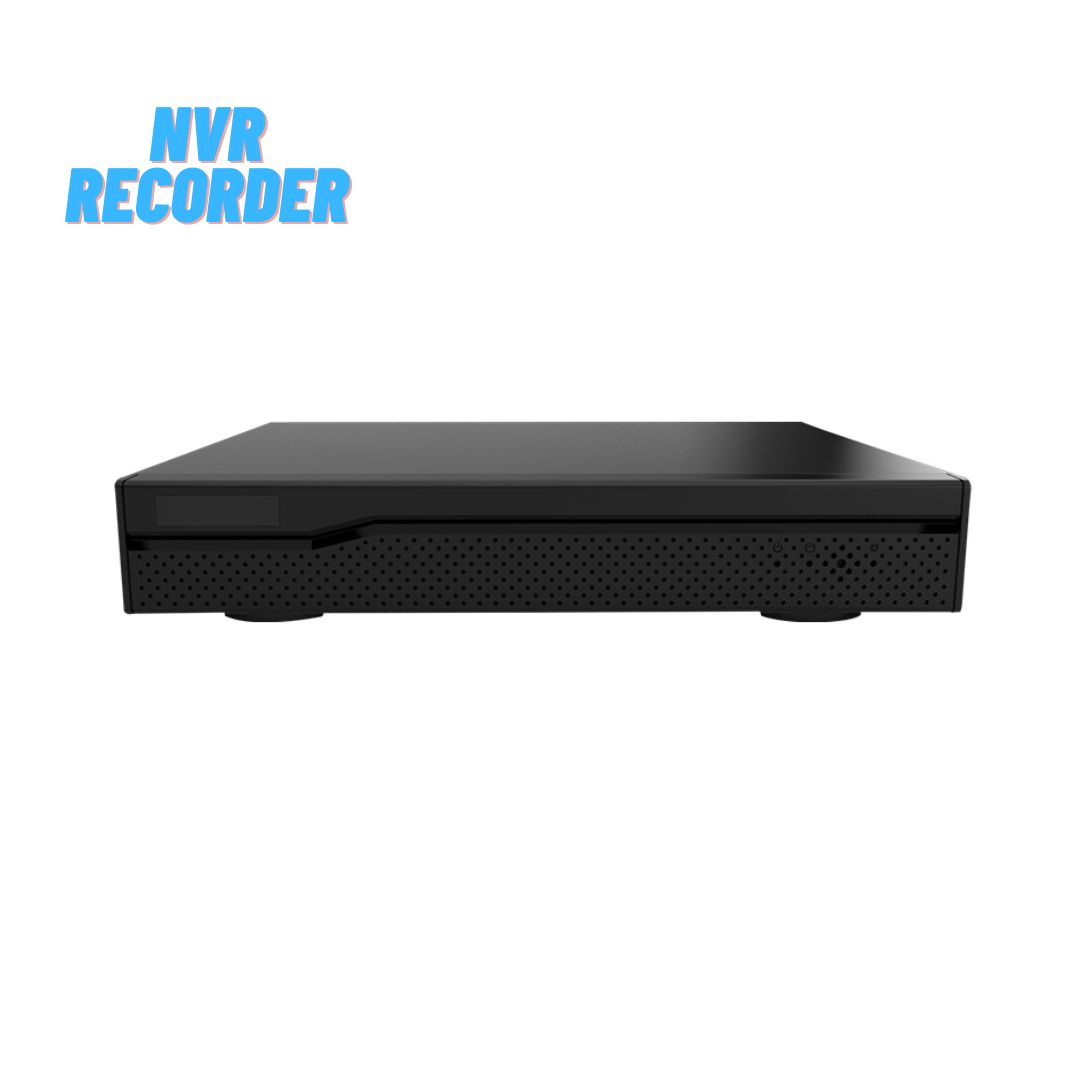

NVR 16CH model :N8216:

Video Input

  • IP Video Input: 16 channels supporting resolutions from 720P to 5MP via RJ45 input.
  • Switch: Not specified.
Video Encoding
  • HDMI Output: 1 channel with 4K resolution at 30Hz.
  • VGA Output: 1 channel with 1920x1080P resolution at 60Hz.
  • Audio Output: HDMI audio output, optional 3.5mm audio port.
Video Encoding
  • Compression Standards: H.265, H.264.
  • Recording/Playback: Supports 16 channels of 5MP recording and 2 channels of 5MP playback.
  • Video Resolutions Supported: 720P, 960P, 1080P, 3MP, 4MP, 5MP.
  • Frame Rates: PAL (25 F/S), NTSC (30 F/S).
  • Video Bitrate: Up to 6.0 Mbps (@5M), 4.0 Mbps (@1080P).
  • Stream Type: Audio/Video, Variable Rate (VBR), Constant Bit Rate (CBR).
  • Dual-Stream Support.
  • Audio Compression: G.711.
HDD Storage
  • Type: 2 x SATA.
  • Capacity: Supports up to 6TB per disk.
  • Backup: USB backup, remote backup.
External Interfaces
  • Network Interface: RJ45 10M/100M (1000M optional).
  • USB Interface: 2 x USB 2.0 (supports upgrade, backup, mouse).
  • Serial Interface: 1 x RS485.
  • Others: Temperature range -10°C to 55°C.
  • Operating System: Embedded Linux.
  • Power Input: DC +12V / 3.5A.
This device is designed for robust video encoding, storage, and output capabilities suitable for surveillance and security applications, providing high-resolution video recording and playback options with flexible storage and interface options.
